Double Belt Conveyors

MODEL : Model : BD

Inquiry

Favorite

VIDEO

Product Description

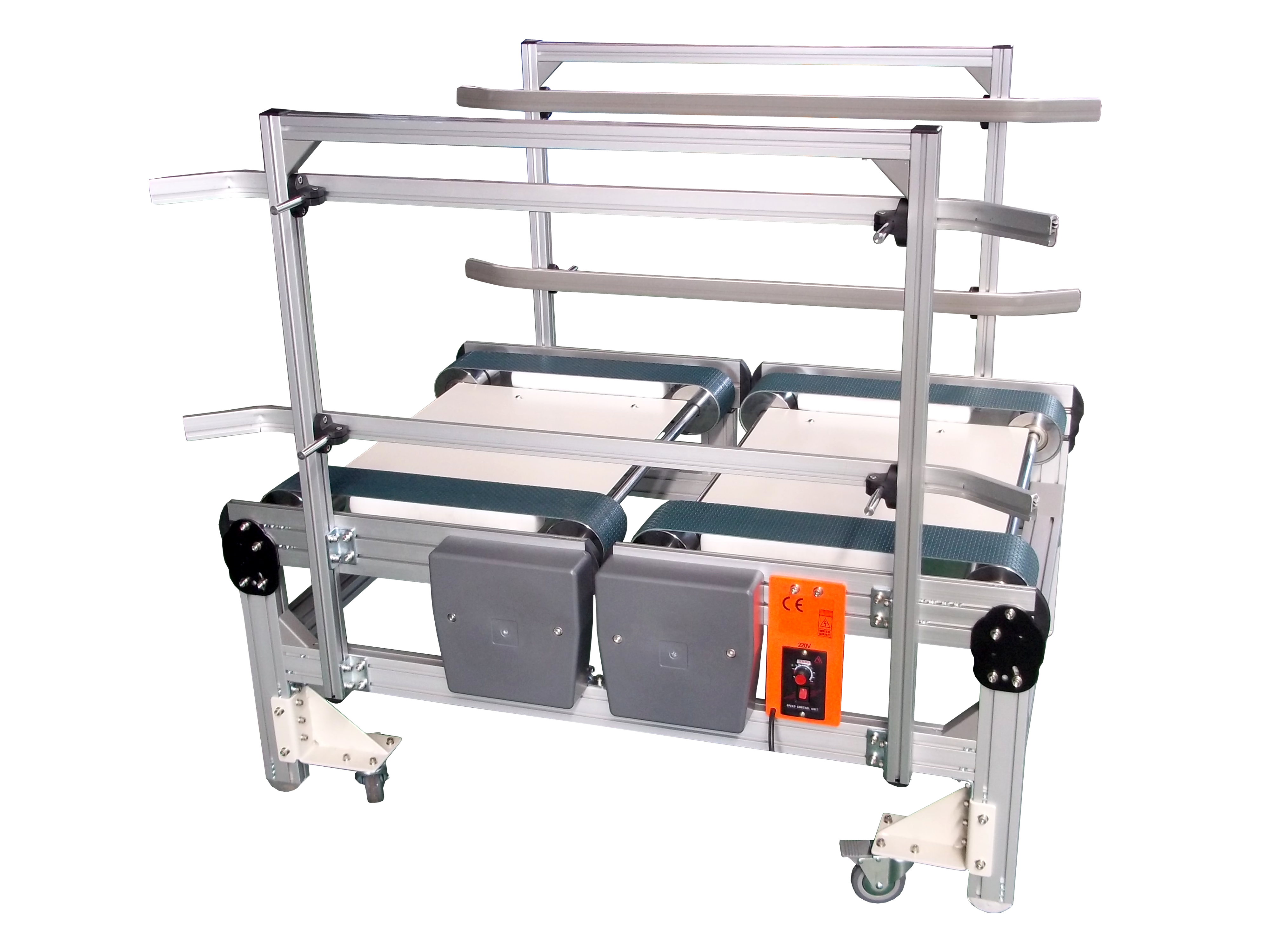

BD Series

1. Aluminum Frame

2. Double Parallel Belt

3. Flat

Product Feature

Good looking with safe features
Easy to operate
Three-point adjustable belt
Easy to maintain : change the motors easily (saving time and effort)
Two covers on each side of belts to avoid anything getting into the belt.
Accurately control the speed : Governor with monitor.
Nickel-plating Screws for good anti-rusting quality.
Good delivery for specification modular production.
Support with incline's angle based on request.
Less the belts' loss as the goods don't touch all belt's surface.

Product Specifications

○ Layout

○ Specifications

Specs and Features for BD Series

Unit : mm

Belt Width (BW)

200

300

400

500

600

700

800

Machine Width(MW)

270

370

470

570

670

770

870

Working Width (PW)

170

270

370

470

570

670

770

Overall Width (TW)

Machine Length (L)

(L1 or L2)

1000

1500

2000

2500

3000

3500

4000

Machine Height (H)

250~1500 ( H1 or H2)

Frame Material

30x90mm A60615-T6 High-Strength Aluminum covered by the anodizing surface and film 15UM.

( 95HB Hardness )

Belt Spec.

Material : PVC , PU (Thickness 1.3 ~ 5mm)

Color : : Green, Grey, Black and White

Pattern : Flat, Cross-Type, Diamond Type

Working Temperature：PVC(-10°C~ +80°C) ； PU(-10°C~ +120°C)

(Antistatic , wear-resisting , grease-proof)

Loading Weight (Kg)

36 Kgs

48 Kgs

60 Kgs

80 Kgs

120 Kgs

Consumption (W)

60 W

90 W

200 W

400 W

750 W

Drive Locations

Side Mounted Drive

End Underslung Drive

Speed (M/MIN)

Standard 6 M／MIN (Fixed)

Standard 3.6 M ／MIN (Adjustable)

1. 2 . 4 . 6 . 8 . M／MIN

0~ 2 ; 1~4 ; 3~6 ; 5~17 M／MIN

Power Supply

AC 110V

AC 220V

AC 380V

AC 440V

Control Speed Drive

Variable (Adjustable)

Adjustable

Continuous (Fixed)

Electric Wire

Length : 3M

Roller Dia. (mm)

Main Shaft 85

Secondary Shaft 85

Support Type

Aluminum Fixed Support (30x60) with Leg Holder or 4" Brake Caster

Trimming Strip

Color : Grey and Blue

Accessories

Aluminum Side Plate Height：60

Belt Guard

C Type Guard (Big)

　* Above are for reference only, specifications can be modified. *
